Discover the ultimate solution for thorough and gentle vehicle cleaning with our self-service car washes.

Equipped with the latest technology, our self-service car washes enable efficient and gentle cleaning of your vehicle. You can choose between different cleaning programs and options to tailor the cleaning to your vehicle’s exact needs. From pre-wash and foam cleaning to high-pressure rinsing and wax sealing, our self-service car washes offer everything you need for a thorough and gentle clean.

EHRLE self-service car washes are available in a wide range of design versions. We offer four different steel construction variants: Standard, DesignPro, SmartLine and Waschheld. Individuality is very important to us! Whether it’s the color of the car wash, the illuminated advertising or the partition walls – we fulfill customer-specific wishes.

Our self-service car washes are characterized not only by their performance, but also by their user-friendliness and reliability. Thanks to intuitive user interfaces and simple operation, you can clean your vehicle effortlessly without having to compromise on professional results. In addition, our self-service car washes are designed to be robust and durable to ensure reliable and long-term use.

With our modern technology and first-class equipment, our self-service car washes are the ideal choice for anyone who values thorough and gentle cleaning of their vehicle.

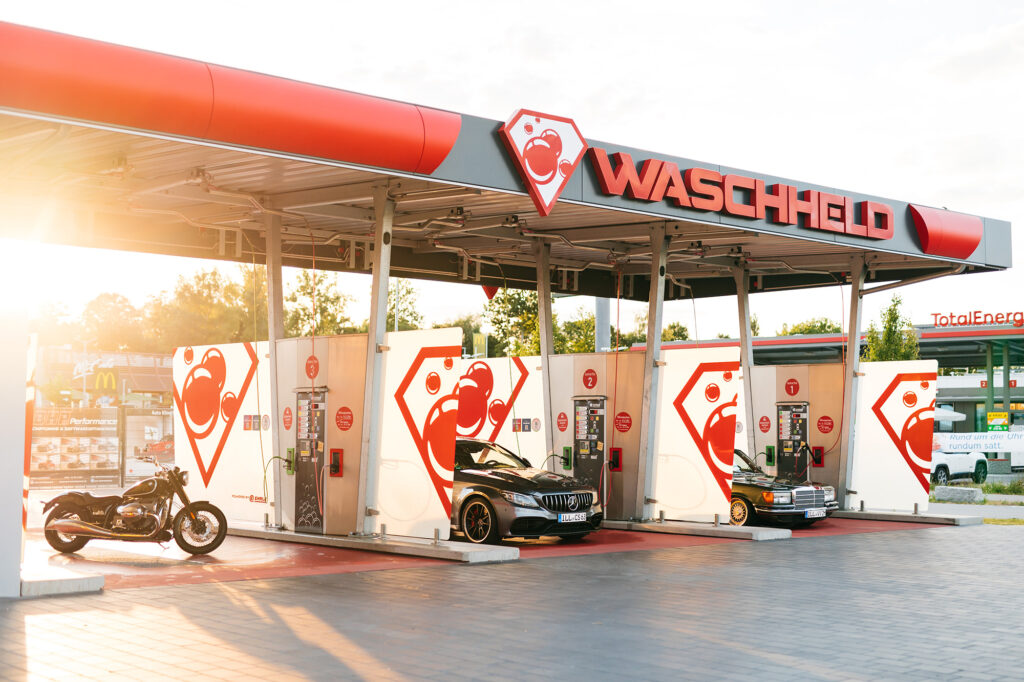

Washing hero

The wash bay steel construction from EHRLE stands for the highest quality, durability and modern design. Our robust, galvanized steel constructions offer optimum protection against rust and corrosion – ideal for demanding use in self-service washing systems. Thanks to the modular design, our systems are flexibly adaptable and enable simple extensions. With maximum stability and a maintenance-friendly design, we guarantee smooth operation under all conditions. Combined with modern design elements, we create a visually appealing and durable solution for your self-service car wash.

Standard

EHRLE ‘s standard steel construction provides a stable and secure base. The use of corrosion-resistant steel guarantees a long service life, even under intensive use and changing weather conditions. EHRLE combines innovative technology with precise workmanship to meet individual customer requirements. Thanks to the flexible design options, the self-service car washes can be optimally adapted to different locations and requirements.

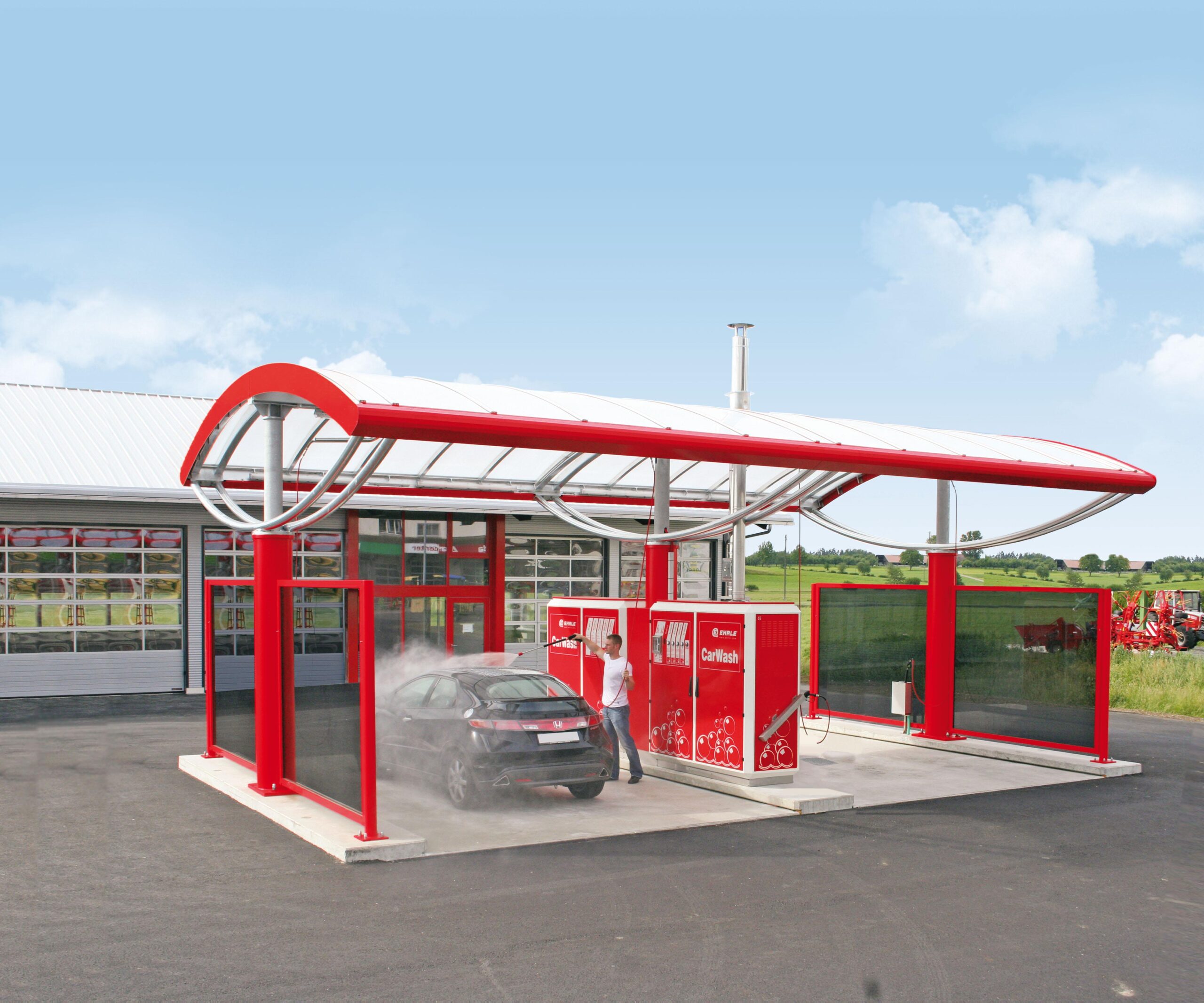

DesignPro

The Stahlbau DesignPro from EHRLE offers the perfect combination of modern design and practical functionality for self-service car washes. Its elegant and contemporary appearance blends harmoniously into any car wash environment. The flexible modular functionality ensures that the DesignPro can be easily adapted to different configurations. Thanks to the well thought-out design, the available space is used efficiently and the technology can be easily integrated. The clear lines and high-quality steel workmanship not only guarantee a long service life, but also an attractive design.

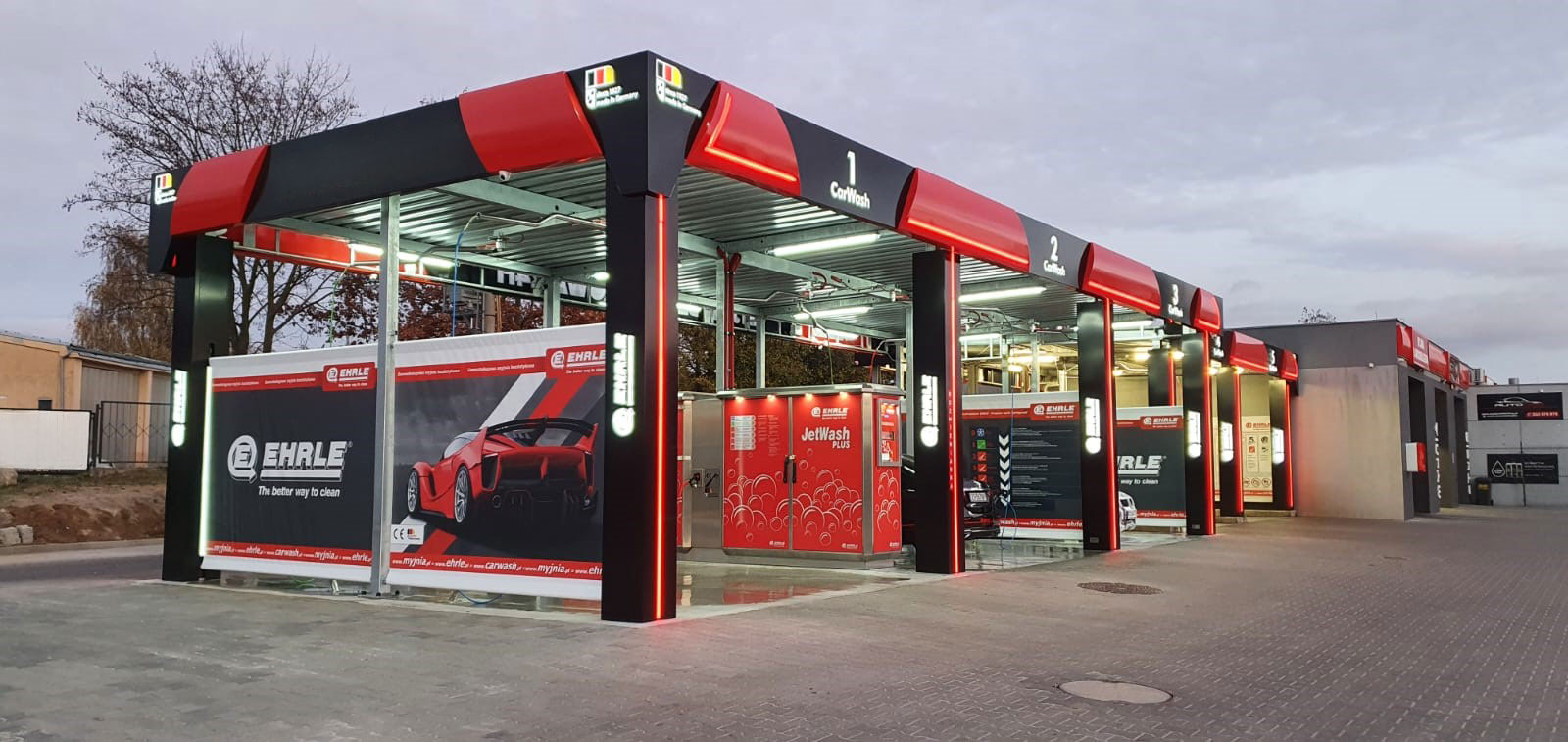

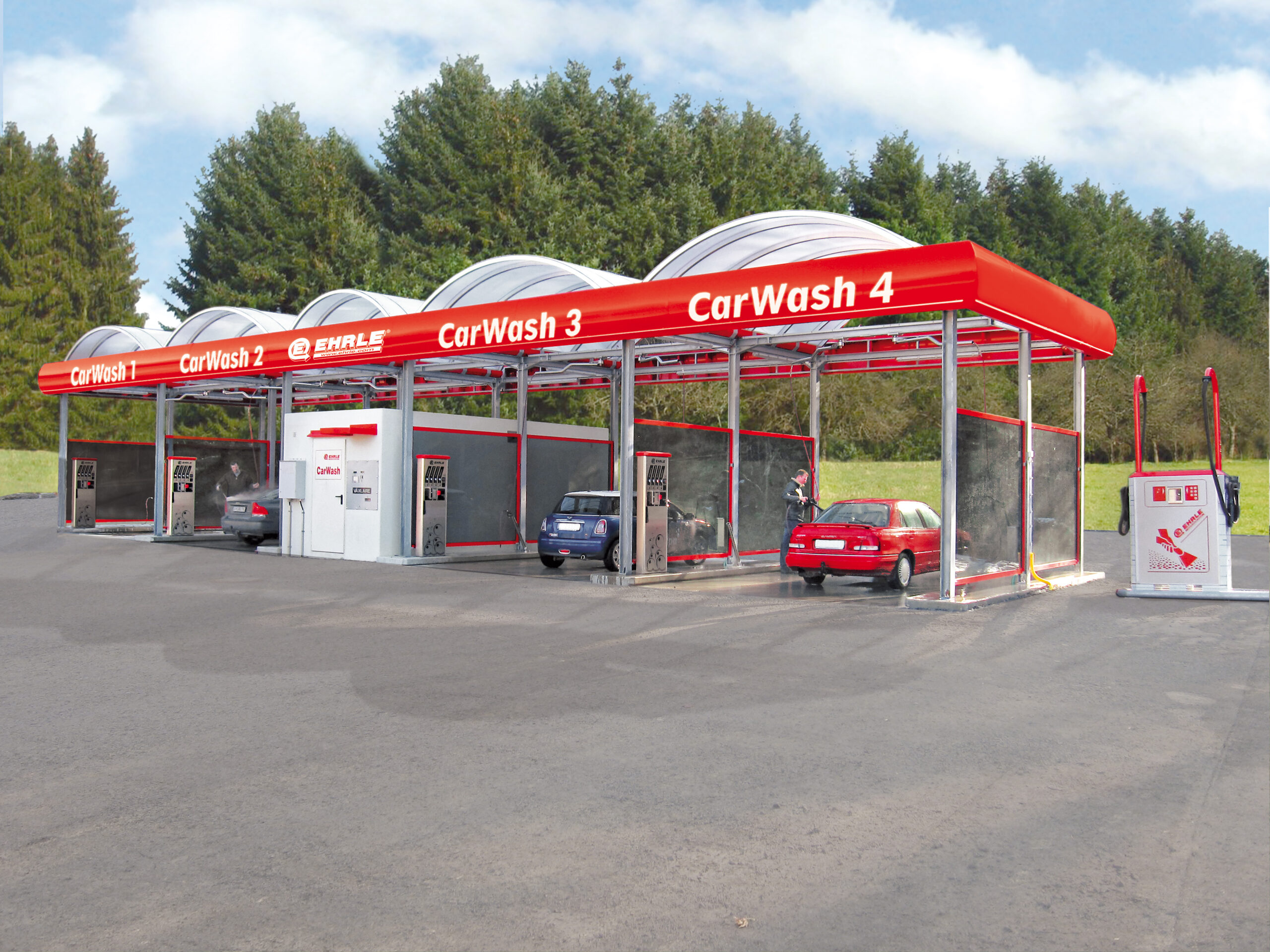

SmartLine

The SmartLine steel construction from EHRLE is the perfect solution for self-service washing systems that depend on performance and reliability. Easy to install and highly adaptable, it will quickly optimize your system. Our system offers outstanding functionality, reduces operating costs and improves energy efficiency. The robust design minimizes maintenance and ensures a long service life. Benefit from a reliable, efficient and easy-to-maintain solution for your car wash.

CarWash technology

SmartWash

JetWash

CarWash PLUS

CompactLine

ModulLine

SmartWash | SmartWash PLUS

The SmartWash and SmartWash PLUS appliance series offers versatile system variants for perfect cleaning results. The standard version is equipped with water softening, while the SmartWash PLUS variant provides a reverse osmosis system for stain-free drying. Both models use an insulated 12kW electric boiler for effective water heating and are equipped with four standard wash programs. Additional programs and extensions such as washing gallows with LED lighting and ceiling or double ceiling gyroscopes can be selected as options. These options improve the wash area lighting and ensure efficient and tidy washing operations.

JetWash | JetWash PLUS

The JetWash and JetWash PLUS systems offer comprehensive cleaning options for self-service car wash stations. Equipped as standard with four standard cleaning programs and optional additional programs, the JetWash models are available up to system variant 3SE and the JetWash PLUS up to system variant 10. Both series can be combined with EHRLE payment systems and CentralPay technology. The systems consist of a robust stainless steel frame and can be heated with oil, gas, district heating or electricity. The JetWash PLUS version includes a reverse osmosis system for stain-free drying and is monitored by a modern SIEMENS computer control system with a 7-inch TFT touchscreen.

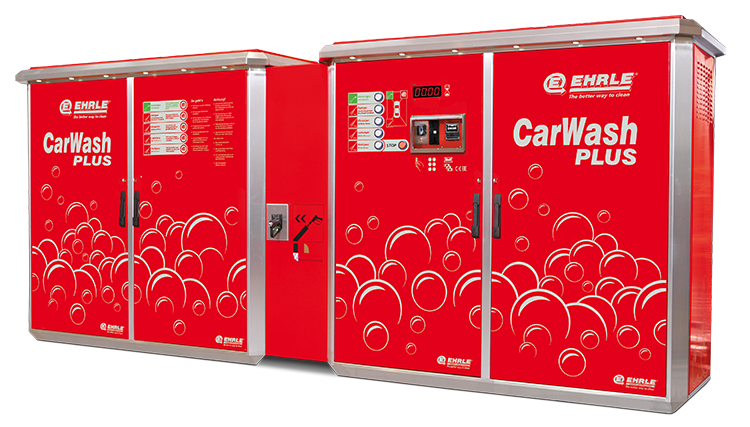

CarWash PLUS

The CarWash PLUS systems offer comprehensive cleaning functions with four standard programs and a selection of up to system variant 10. They are compatible with EHRLE payment systems and CentralPay technology. The robust stainless steel construction and powder-coated cladding ensure a long service life. The system can be heated either with oil, gas, district heating or electricity. The CarWash PLUS is equipped with a Duo water softener and a reverse osmosis system with an 800 l tank to prevent water stains and ensure consistently high washing results. A SIEMENS computer with 7-inch TFT touchscreen provides comprehensive control and financial information.

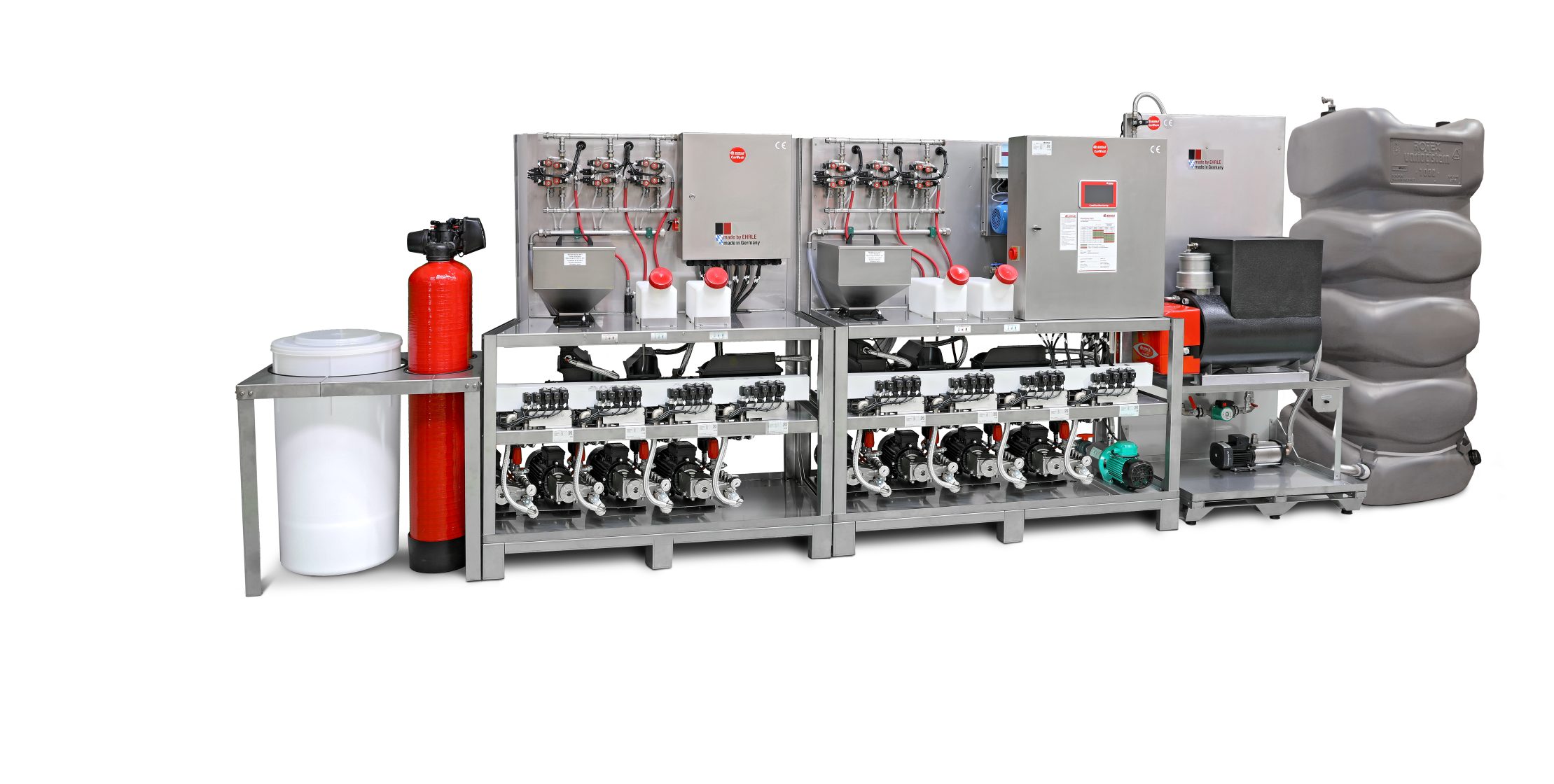

CompactLine

The CompactLine modular system offers flexible solutions for self-service washing systems. The basic module contains a double water softener, an R/O osmosis unit with 1000 l tank, a MicroPowder dosing station and an electrical control terminal. The 7-inch TFT touchscreen enables comprehensive control and financial monitoring. Extension modules allow the installation of up to four additional washing stations, so that systems with a total of up to four washing stations can be realized. The CompactLine is compatible with all EHRLE hot water heating systems and can be operated with oil, gas, electricity or district heating. The series offers four standard washing programs and is available up to system variant 10.

ModulLine

The ModulLine offers a modular, economical solution for self-service washing systems. Each module is mounted on a stainless steel frame and is supplied centrally via separate media lines such as fresh water and osmosis water. The technology modules are independently controlled via a SIEMENS PLC, and a 7-inch or optional 12-inch TFT touchscreen provides comprehensive control and financial information. The systems are equipped with a MicroPowder dosing station and four standard wash programs, available up to system variant 10. ModulLine can be combined with all EHRLE hot water heating systems and payment systems as well as CentralPay technology. Ideal for self-service laundries with up to 12 washing stations.

Heating systems

Heat pump

Oil

Gas

District heating

Electric

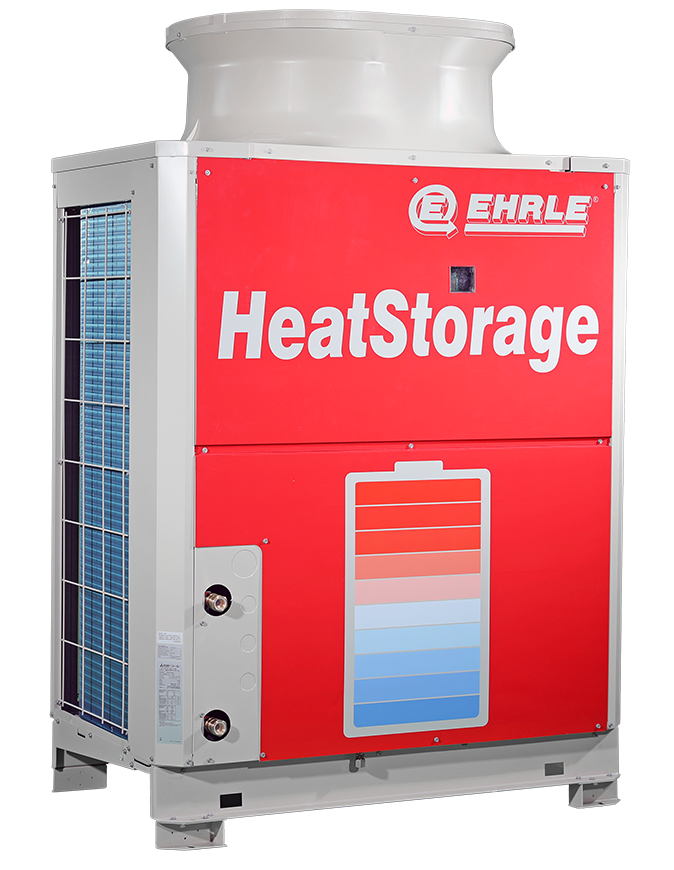

Heat pump

The EHRLE CarWash technology container with HeatStorage offers efficient heating and hot water solutions for self-service car washes. The EHRLE HeatStorage heat pump system installed on the roof supplies hot water at up to 85°C at an outside air temperature of down to -3°C and remains effective even at -15°C. The heat pump, powered by an electric scroll compressor and environmentally friendly CO₂ refrigerant, ensures a constant water temperature between 55°C and 58°C. With internal storage for 340 kW and support from a PV installation on the roof, the underfloor heating is also operated efficiently. Ideal for demanding cleaning requirements and sustainable operation.

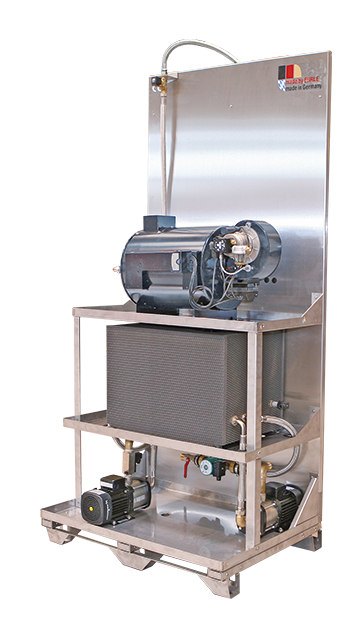

Oil heating

The LCE oil heating modules from EHRLE offer reliable hot water heating for self-service car washes. The model with 55 kW heating power supplies up to three wash bays, while the 110 kW version can serve up to six wash bays. Both modules are equipped with highly efficient stainless steel heating coils and modern pressure atomization oil burners that achieve up to 93% efficiency. The integrated PLC control system regulates the wash water temperature precisely and adapts intelligently to the workload and outside temperature. Both models offer on-demand control, fast temperature recovery and a booster pump for optimum performance and energy savings.

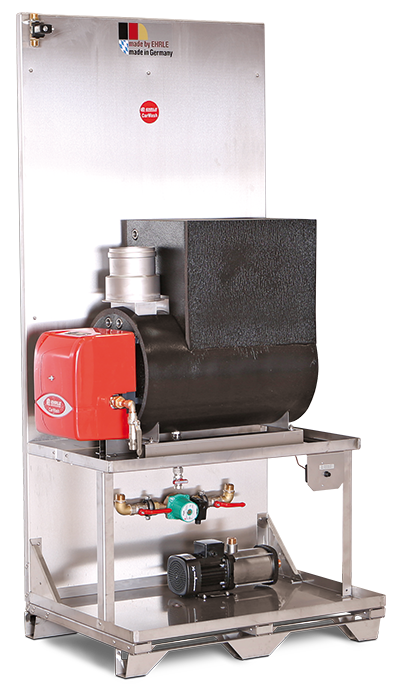

Gas heating

The EHRLE LCE gas heating modules provide reliable hot water heating for self-service car washes. The 50-85 kW models supply up to four wash bays, while the more powerful 105-160 kW variants serve the same number, but with a higher heating capacity. Equipped with stainless steel boilers and modulating gas burners, these modules guarantee high energy efficiency of up to 106%. The intelligent control system regulates the water temperature precisely, reacts quickly to temperature changes and lowers the water temperature by 20°C during breaks in operation. Both model series are DVGW-certified in accordance with DIN ISO 9001:2015 and offer demand-based control for optimum performance and energy savings.

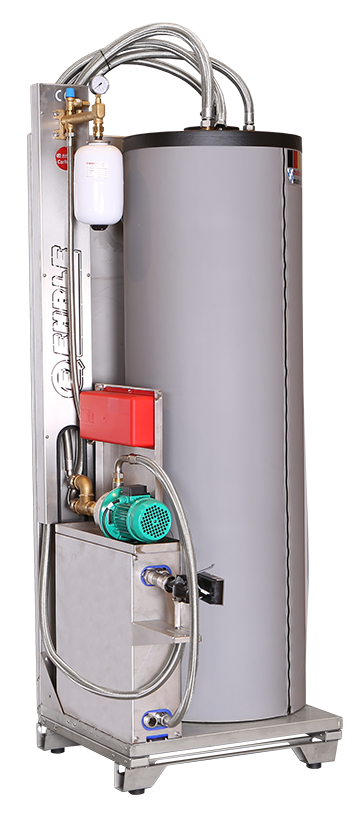

District heating

The SLM storage charging module from EHRLE is ideal for connection to district heating systems. Equipped with a proven double jacket system, it enables the efficient use of thermal energy for water heating and underfloor heating. The enamelled cylinder with 100 mm foam insulation minimizes heat loss and provides reliable frost protection. Pressure surges are buffered by the domestic hot water safety group, which reduces the load on the system. The wash water temperature is precisely regulated via a thermal sensor and the PLC control system, with infinitely variable adjustment via touch panel. The SLM module is mounted in a stainless steel frame and can be easily integrated into existing washing modules.

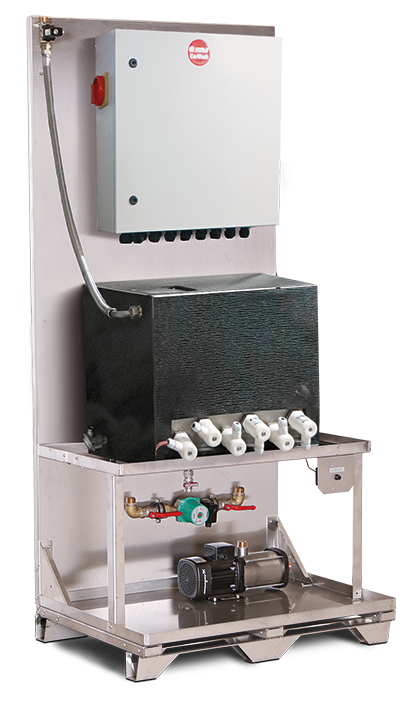

Electric heating

The EHRLE LCE electric hot water heating system offers an efficient solution for self-service car washes. With an intelligent control mechanism, the stainless steel boiler keeps hot water permanently available and adjusts the temperature to the load and outside temperature as required. During breaks in operation, the water temperature is lowered by 20°C and quickly raised again. The integrated booster pump supplies hot water for the washing areas, while an additional domestic hot water pump supplies the underfloor heating. The HM electric boiler with cascade control can serve up to twelve wash bays, optimizes energy consumption and reduces CO₂ emissions by controlling the heating elements as required.

System variants

SV1

SV2

SV3SE

SV4

SV5

SV6

SV7

SV8SE

SV9

SV10

System variant 1

– Pre-cleaning with SoftFoam lance and SoftFoam

– Pre-cleaning with SoftFoam brush and SoftFoam

– Cleaning with ActivePower Pearl MicroPowder with

Jet pipe and high pressure

– Rinsing with jet pipe and high pressure

– Paint protection with UltraProtection with jet pipe

and high pressure

– High-gloss finish with SuperFinish with jet pipe

and high pressure

– 3 ceiling gyroscopes and a 3-wire system

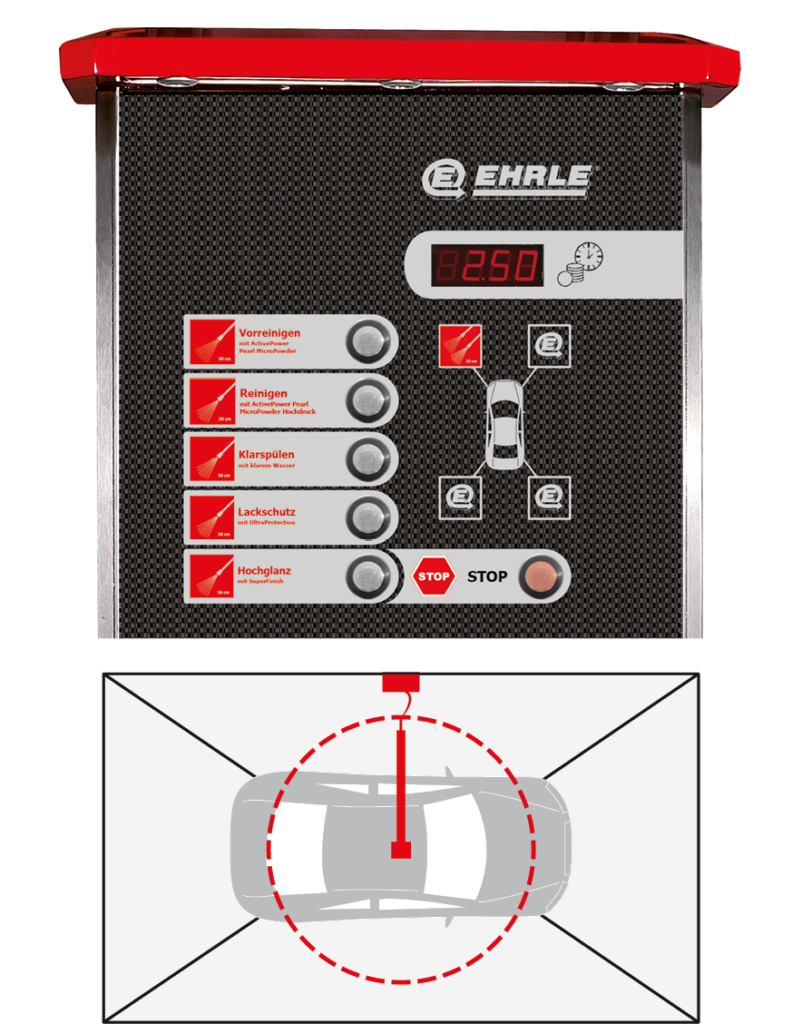

System variant 2

– Pre-cleaning with ActivePower Pearl

MicroPowder with jet pipe and low pressure

– Cleaning with ActivePower Pearl MicroPowder

with jet pipe and high pressure

– Rinsing with jet pipe and high pressure

– Paint protection with UltraProtection with jet pipe

and high pressure

– High-gloss finish with SuperFinish with jet pipe

and high pressure

– 1 ceiling gyroscope and a 1-wire system

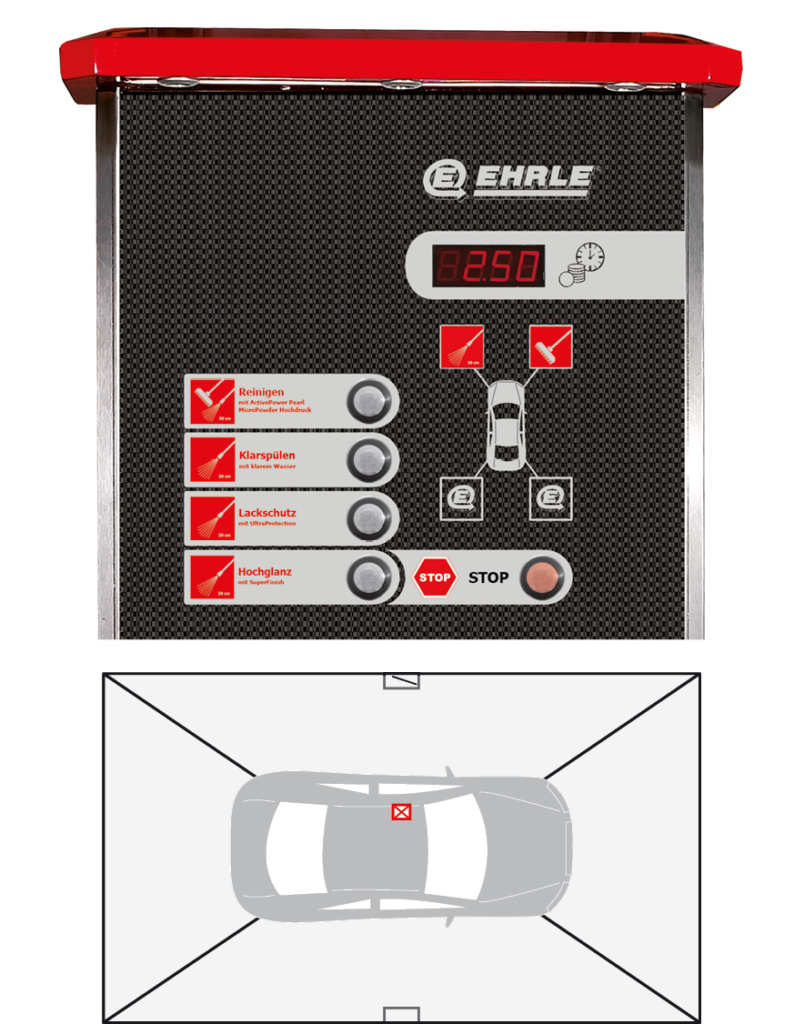

System variant 3SE

– Cleaning with ActivePower Pearl MicroPowder with

Jet pipe or foam brush and high pressure

– Rinsing with jet pipe and high pressure

– Paint protection with UltraProtection with jet pipe

and high pressure

– High-gloss finish with SuperFinish with jet pipe

and high pressure

– 2 ceiling gyroscopes and a 1-wire system

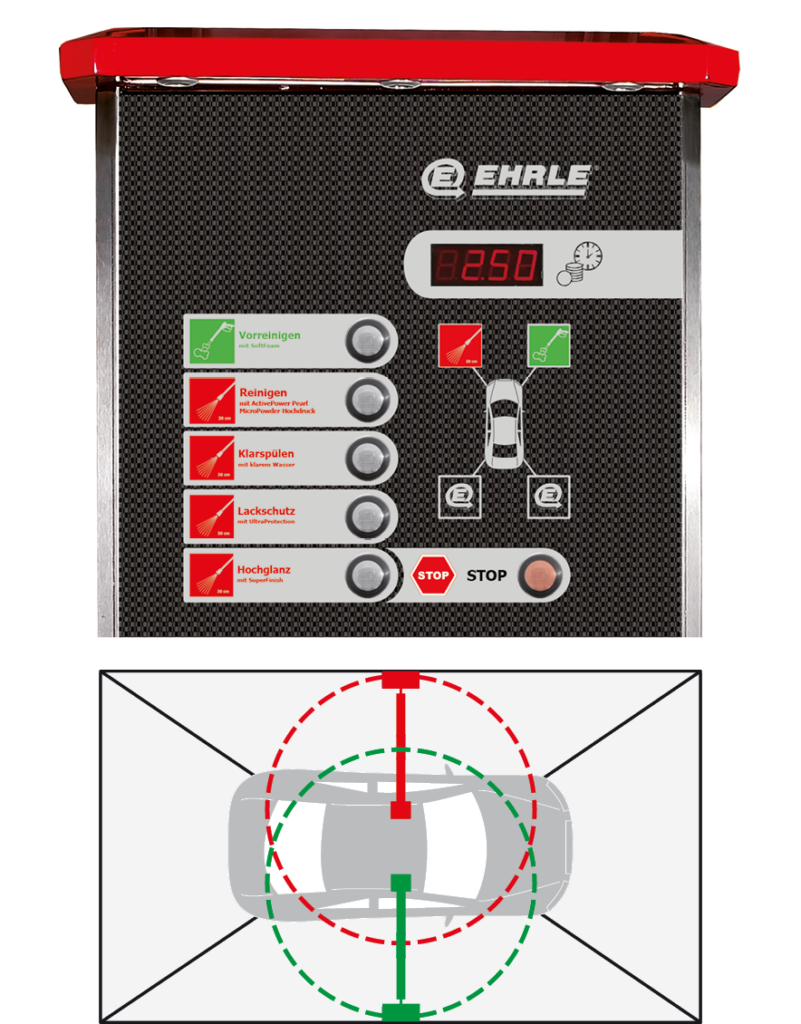

System variant 4

– Pre-cleaning with SoftFoam lance and Soft-Foam

– Cleaning with ActivePower Pearl MicroPowder with

Jet pipe and high pressure

– Rinsing with jet pipe and high pressure

– Paint protection with UltraProtection with jet pipe

and high pressure

– High-gloss finish with SuperFinish with jet pipe

and high pressure

– 2 ceiling gyroscopes and a 2-wire system

System variant 5

– Pre-cleaning with SoftFoam brush and SoftFoam

– Cleaning with ActivePower Pearl MicroPowder

with jet pipe and high pressure

– Rinsing with jet pipe and high pressure

– Paint protection with UltraProtection with jet pipe

and high pressure

– High-gloss finish with SuperFinish with jet pipe

and high pressure

– 2 ceiling gyroscopes and a 2-wire system

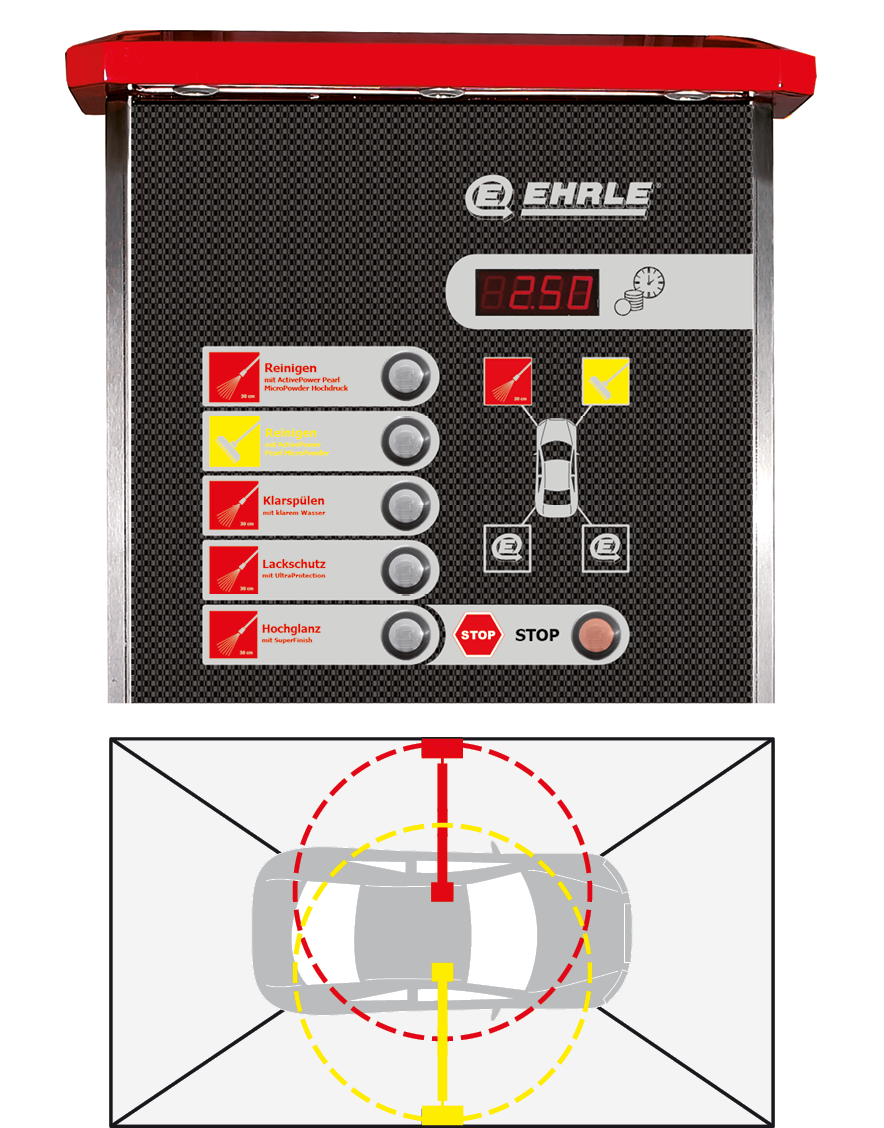

System variant 6

– Cleaning with ActivePower Pearl MicroPowder

with jet pipe and high pressure

– Cleaning with ActivePower Pearl MicroPowder

and foam brush

– Rinsing with jet pipe and high pressure

– Paint protection with UltraProtection with jet pipe

and high pressure

– High-gloss finish with SuperFinish with jet pipe

and high pressure

– 2 ceiling gyroscopes and a 2-wire system

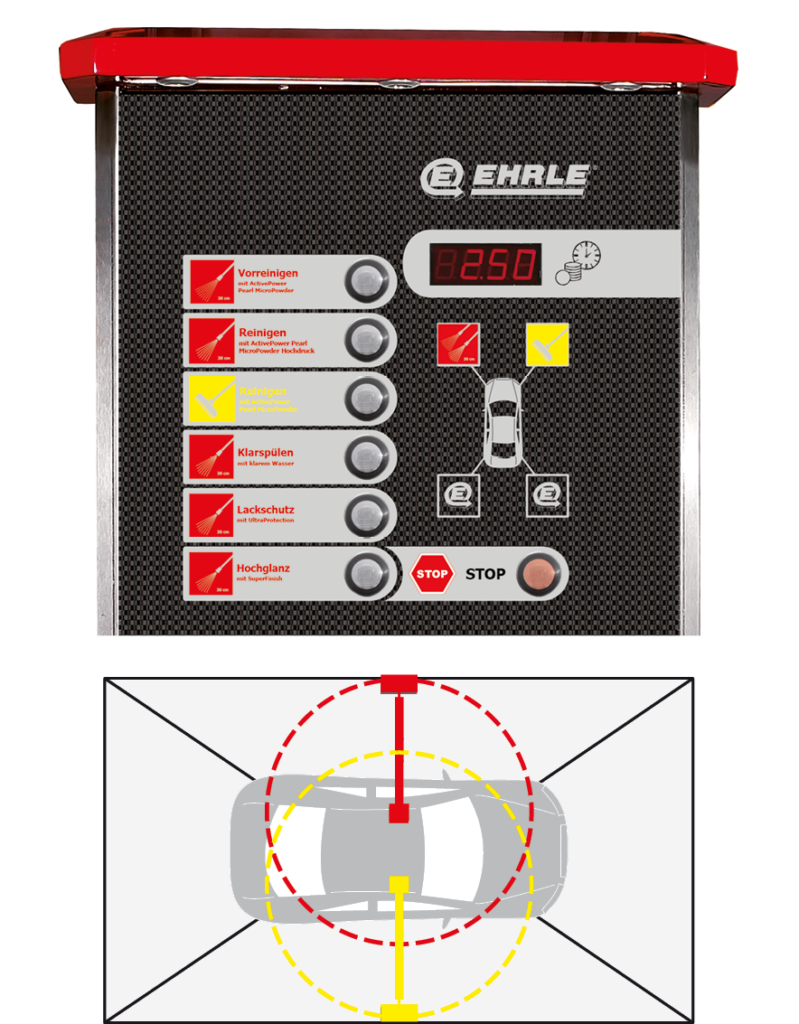

System variant 7

– Pre-cleaning with ActivePower Pearl MicroPowder

with jet pipe and low pressure

– Cleaning with ActivePower Pearl MicroPowder with

Jet pipe and high pressure

– Cleaning with ActivePower Pearl MicroPowder

and foam brush

– Rinsing with jet pipe and high pressure

– Paint protection with UltraProtection, jet pipe and high pressure

– High gloss with SuperFinish with jet pipe and high pressure

– 2 ceiling gyroscopes and a 2-wire system

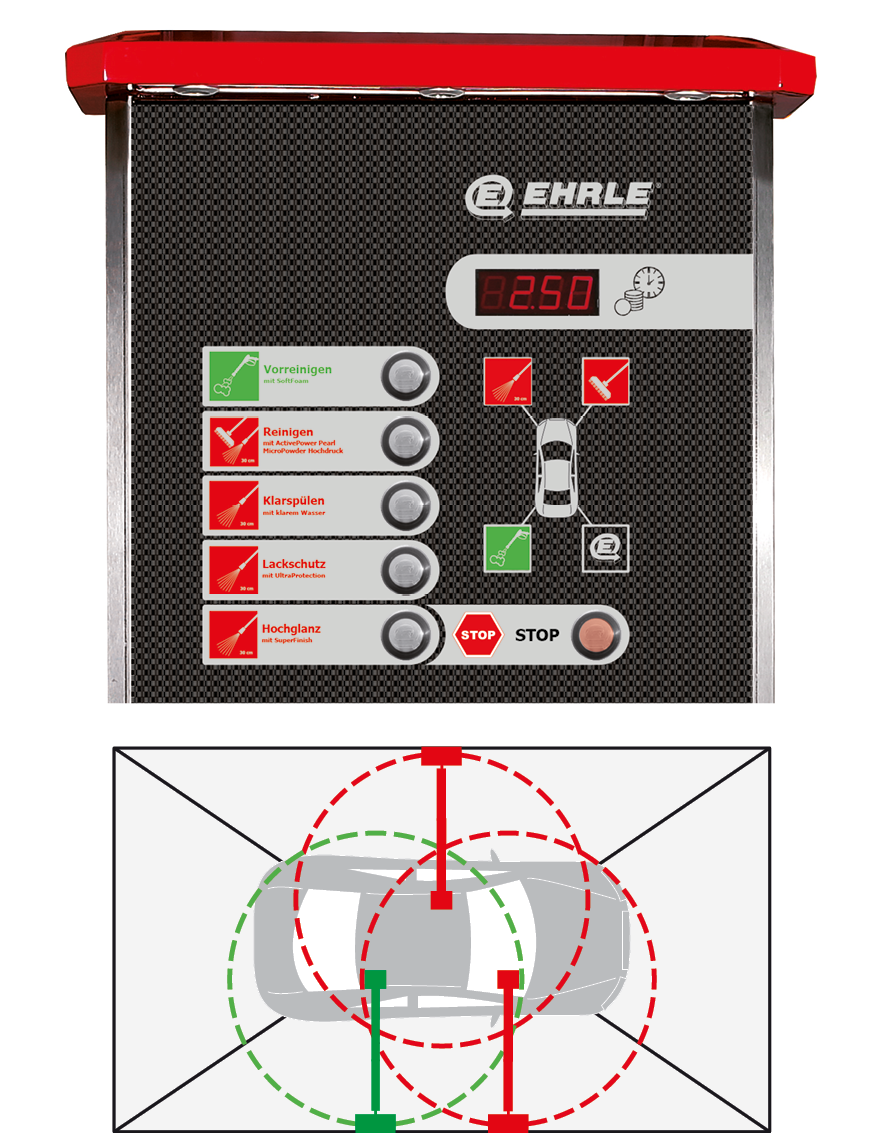

System variant 8SE

– Pre-cleaning with SoftFoam lance and SoftFoam

– Cleaning with ActivePower Pearl MicroPowder with

Jet pipe or foam brush and high pressure

– Rinsing with jet pipe and high pressure

– Paint protection with UltraProtection with jet pipe and high pressure

– High gloss with SuperFinish with jet pipe and high pressure

– 3 ceiling gyroscopes and a 2-wire system

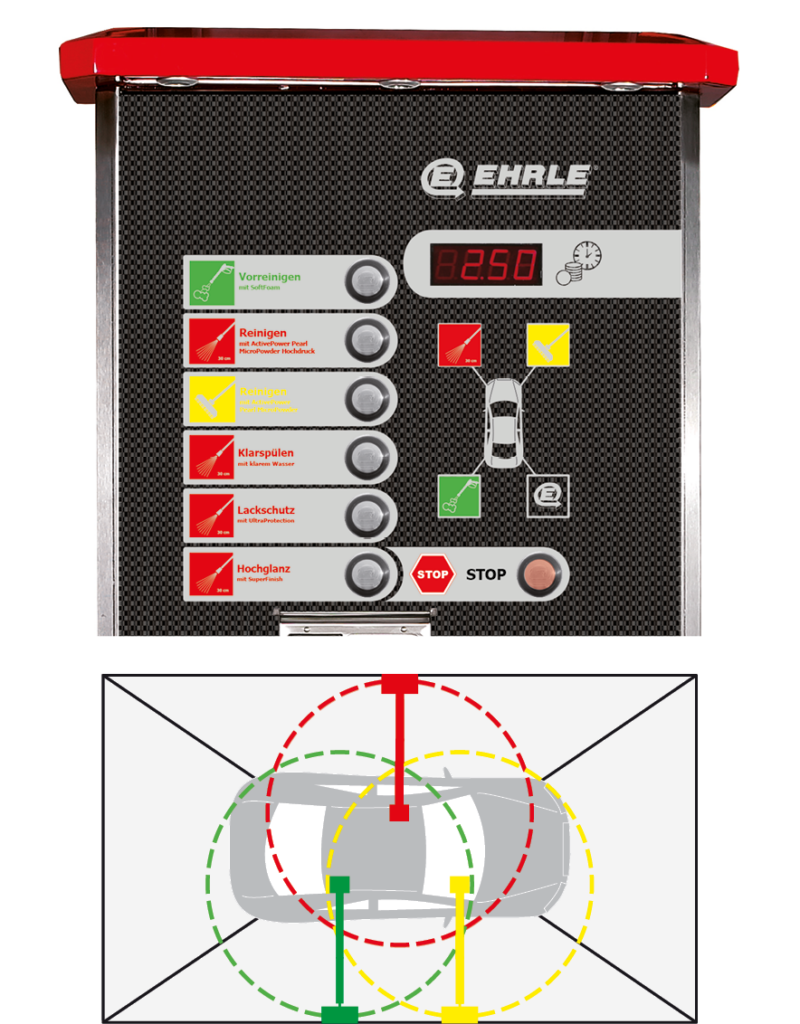

System variant 9

– Pre-cleaning with SoftFoam lance and SoftFoam

– Cleaning with ActivePower Pearl MicroPowder with

Jet pipe and high pressure

– Cleaning with ActivePower Pearl MicroPowder

and foam brush

– Rinsing with jet pipe and high pressure

– Paint protection with UltraProtection with jet pipe and high pressure

– High gloss with SuperFinish with jet pipe and high pressure

– 3 ceiling gyroscopes and a 3-wire system

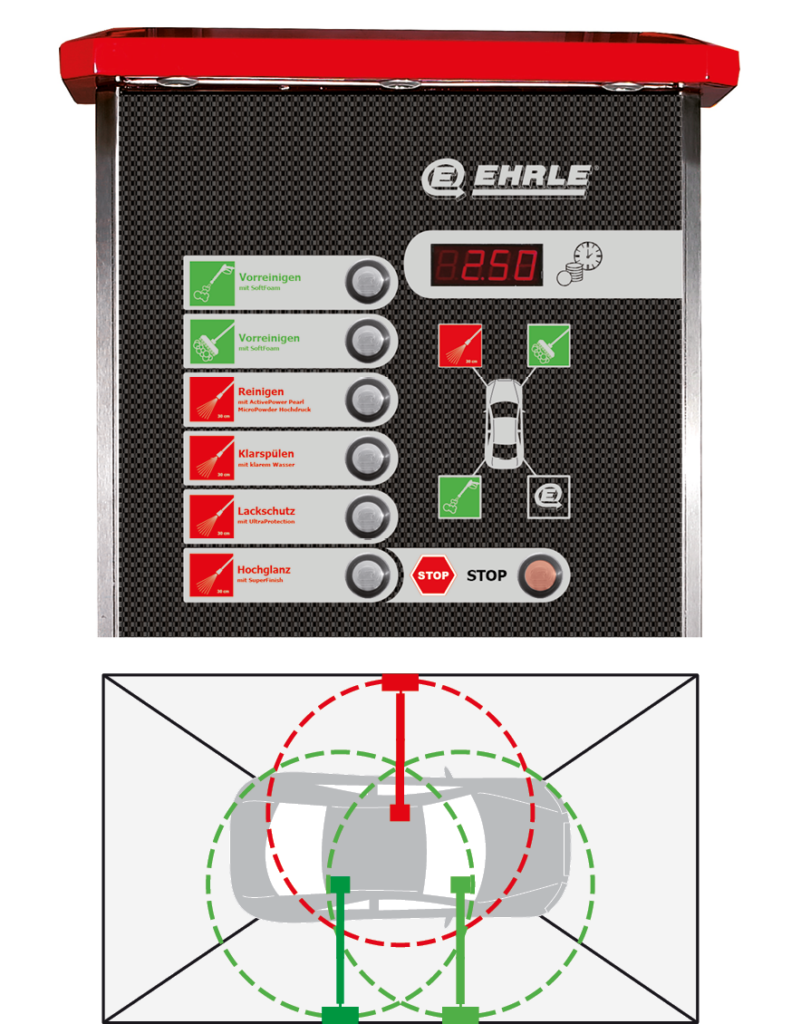

System variant 10

– Pre-cleaning with SoftFoam lance and SoftFoam

– Pre-cleaning with SoftFoam brush and SoftFoam

– Cleaning with ActivePower Pearl MicroPowder with

Jet pipe and high pressure

– Rinsing with jet pipe and high pressure

– Paint protection with UltraProtection with jet pipe

and high pressure

– High-gloss finish with SuperFinish with jet pipe

and high pressure

– 3 ceiling gyroscopes and a 3-wire system

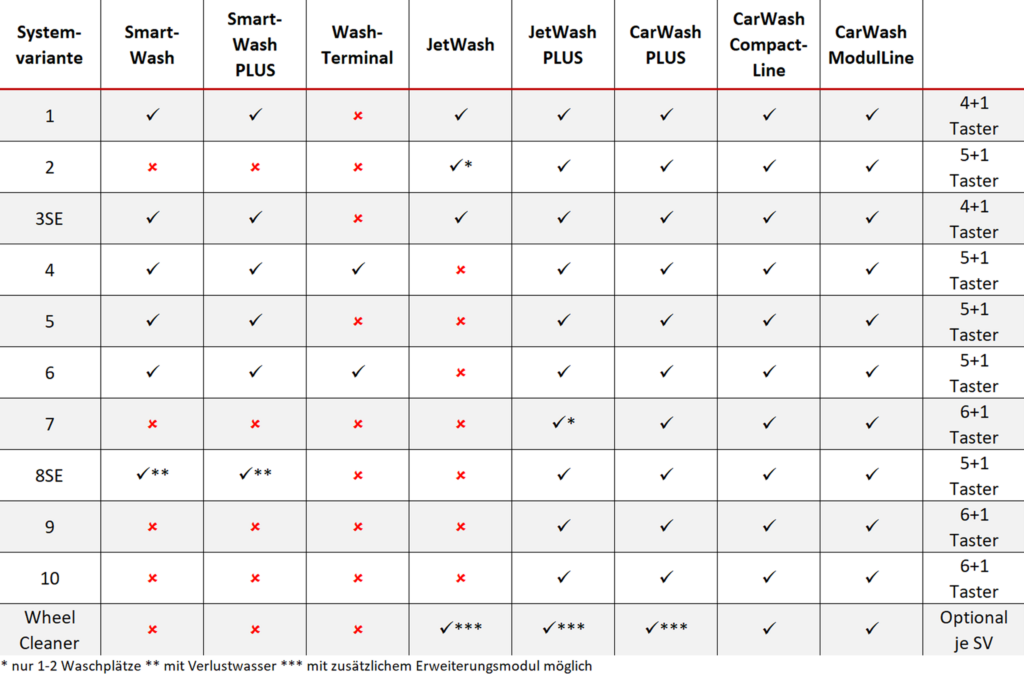

Overview of our system combinations

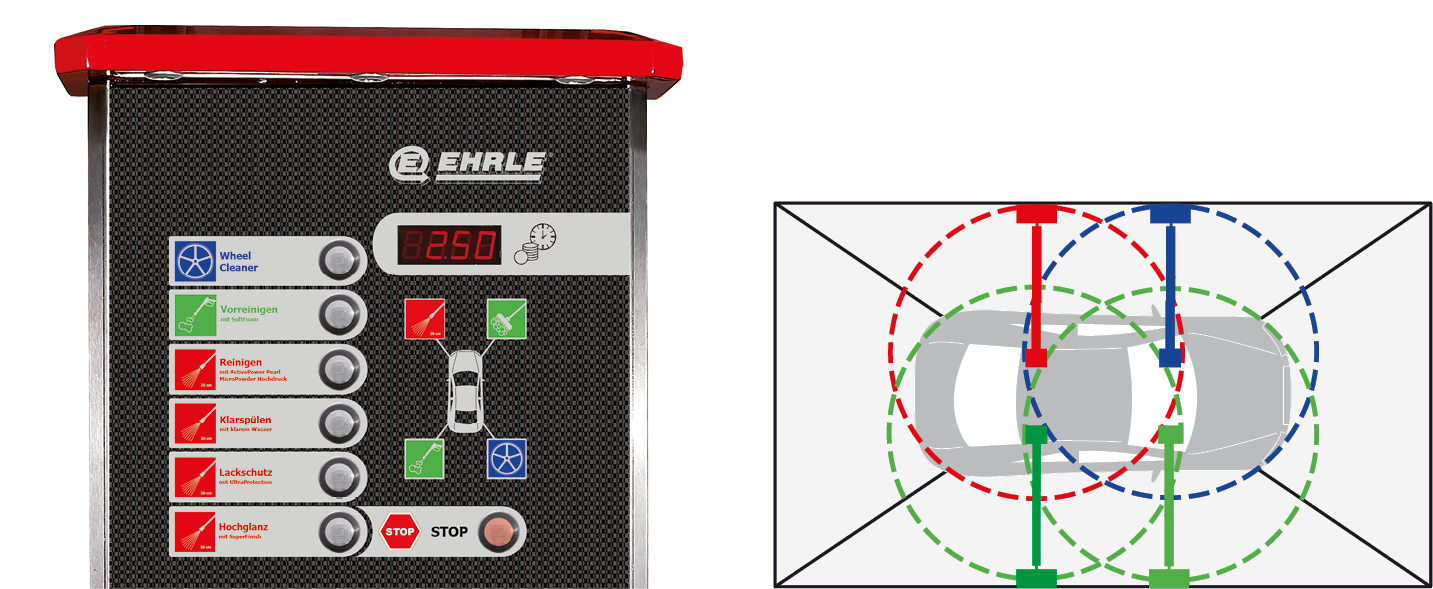

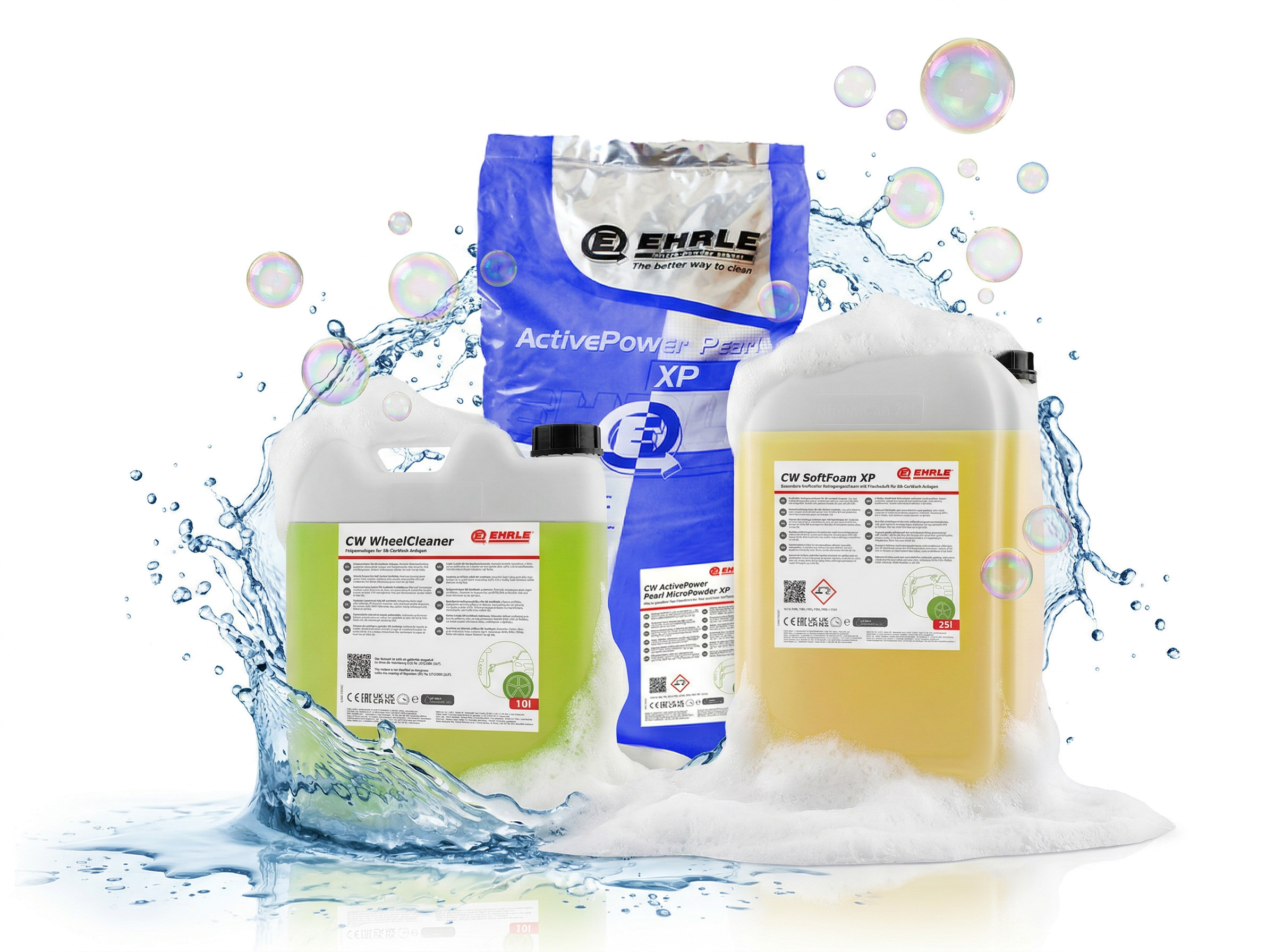

Additional program with rim cleaner “WheelCleaner” available:

Design your CarWash

Design your car wash individually: With us, you have the freedom to determine the colors of your car wash system yourself. Give the system a unique design that perfectly matches your company or brand and makes your car wash unmistakable.

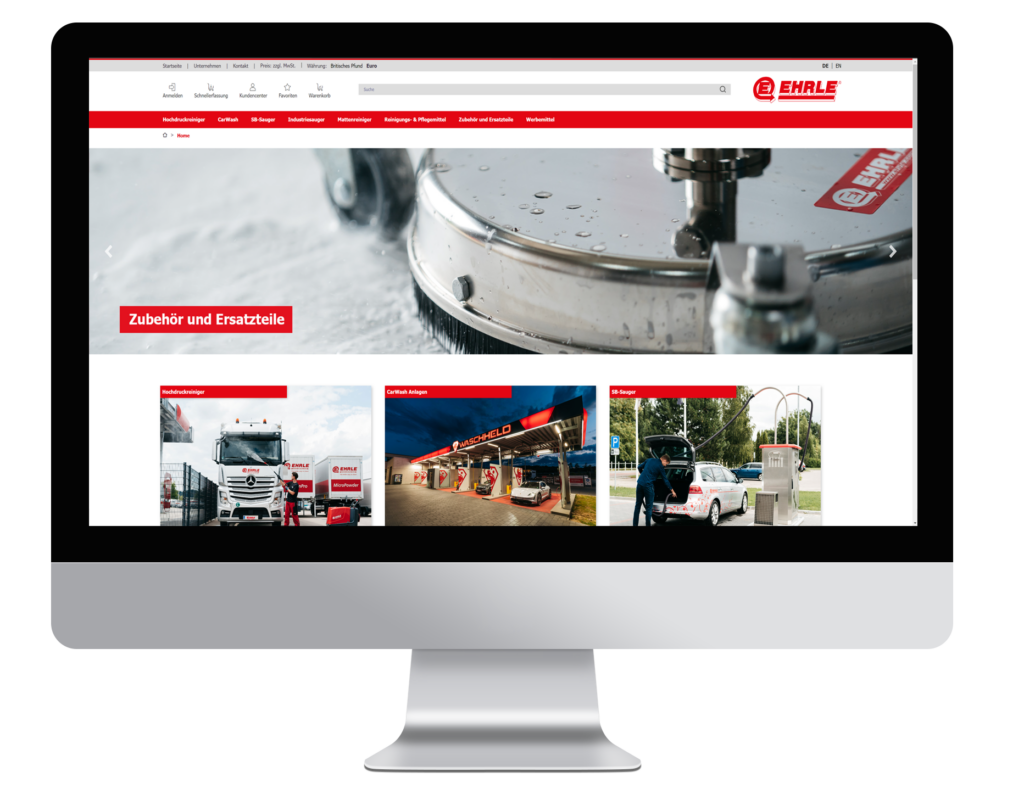

Further information on the technical data, equipment, special accessories, appliance series and much more can be found in our webshop. A wide range of download brochures are also available there.
